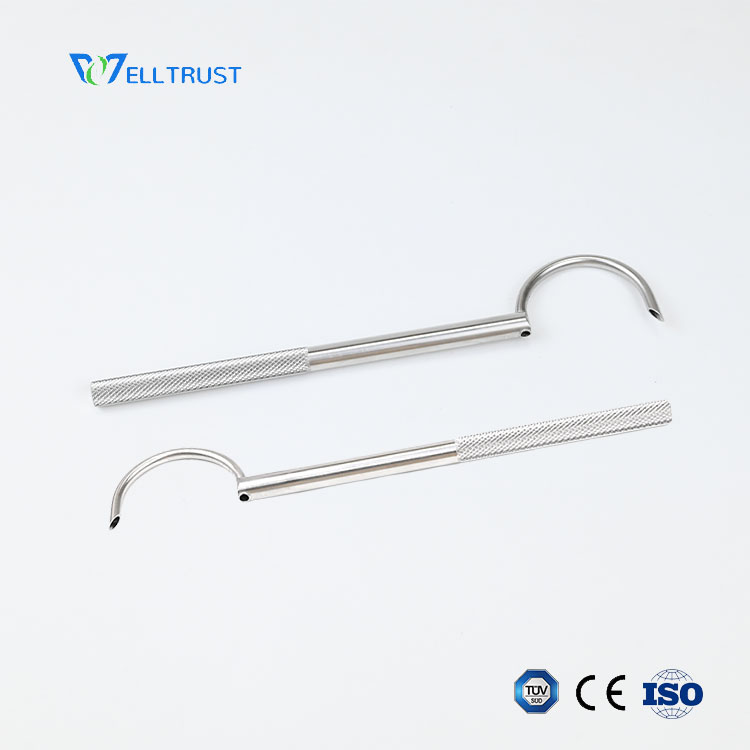

Veterinary Sleeve Wire Guide
- Veterinary Orthopedic Instrument: Designed for veterinary orthopedic trauma procedures.
- Curved Sleeve Design: Provides a guided pathway for compatible wires.
- Three Models: VH00201, VH00202 and VH00203.
- Multiple Bore Options: 0.5 mm, 0.8 mm and 1.2 mm.
- Size Selection: 13.8 mm, 20 mm and 30 mm instrument diameters.
| Model No. | Product | Diameter | Bore Diameter |
|---|---|---|---|
| VH00201 | Sleeve Wire Guide | 13.8 mm | 0.5 mm |
| VH00202 | Sleeve Wire Guide | 20 mm | 0.8 mm |
| VH00203 | Sleeve Wire Guide | 30 mm | 1.2 mm |

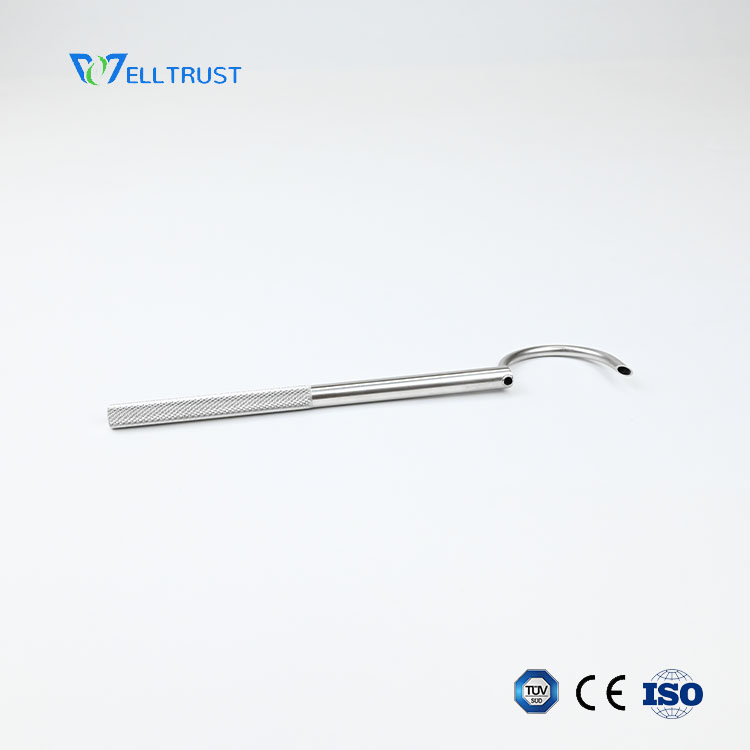

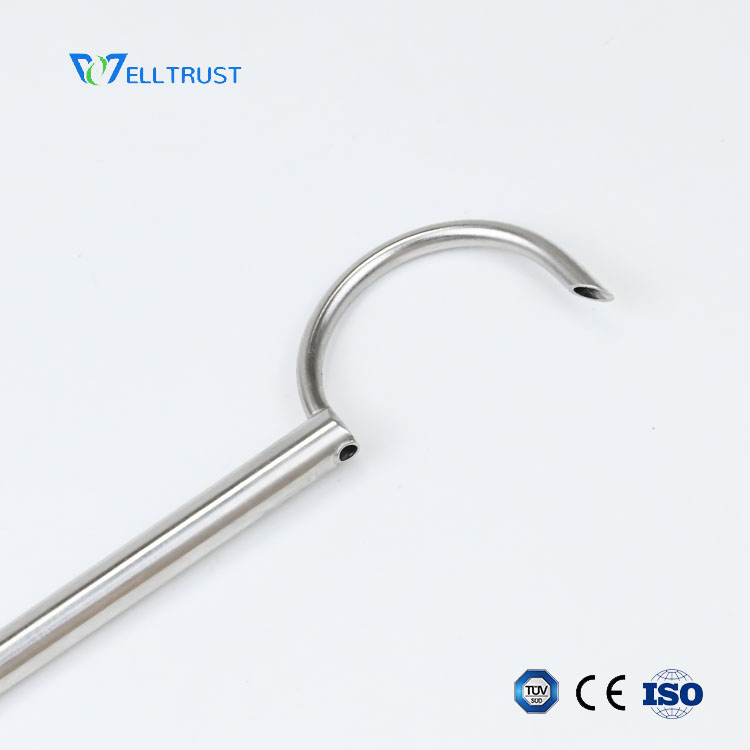

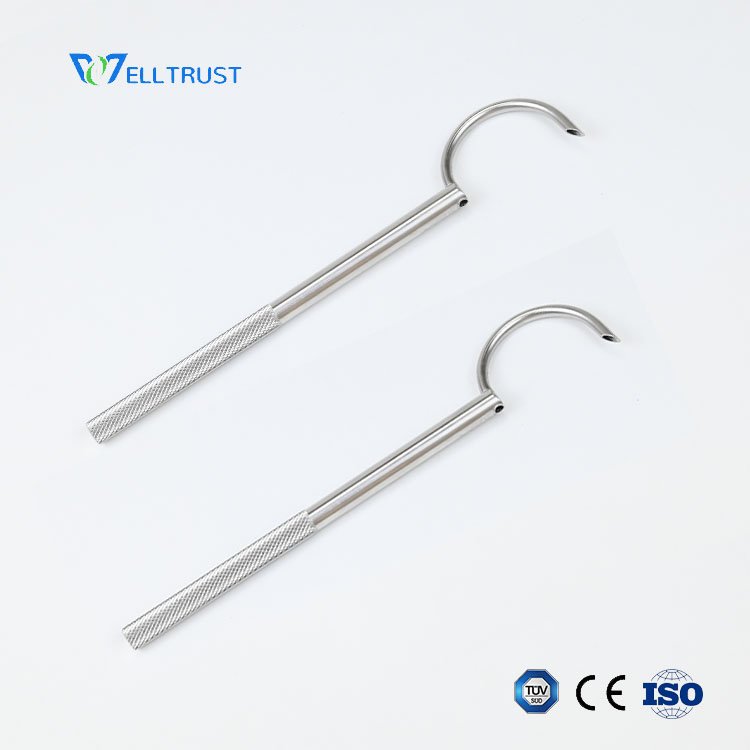

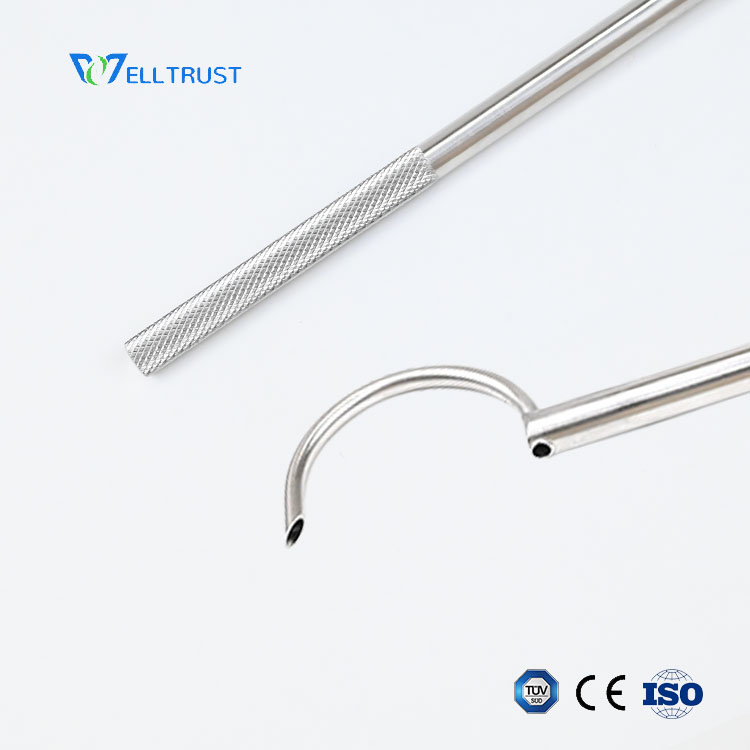

The Veterinary Sleeve Wire Guide VH002 is a veterinary orthopedic trauma instrument designed to assist with controlled wire guidance during bone fixation procedures. Its curved sleeve structure provides a defined pathway for compatible wires, while the extended handle allows the instrument to be positioned and controlled manually during orthopedic procedures.
The VH002 series is available in three configurations to accommodate different wire guidance requirements. Model VH00201 has a 13.8 mm instrument diameter and a 0.5 mm bore diameter. VH00202 has a 20 mm diameter with a 0.8 mm bore, while VH00203 has a 30 mm diameter with a 1.2 mm bore. The different bore sizes allow users to select a suitable configuration according to the diameter of the compatible wire.
In veterinary orthopedic trauma procedures, wire-guiding instruments can be used as part of the instrumentation for bone fixation and related procedures where controlled wire positioning is required. The sleeve structure helps define the wire pathway, while the curved profile can support positioning around the target area. Model selection should always be based on the compatible wire size and the requirements of the applicable fixation system.
The VH002 series provides a simple way for veterinary clinics, orthopedic specialists and distributors to select different wire guide configurations within one product family. The clearly defined model numbers and bore specifications also make the instruments easy to organize when preparing veterinary orthopedic trauma instrument sets.
WTT Vet supplies veterinary orthopedic trauma implants and instruments for professional veterinary applications. The Veterinary Sleeve Wire Guide VH002 is available in three configurations and can be supplied according to the listed specifications.
Frequently Asked Questions
1. What is the Veterinary Sleeve Wire Guide used for?
It is a veterinary orthopedic trauma instrument used to assist with controlled guidance and positioning of compatible wires during bone fixation procedures.
2. What models are available?
The VH002 series includes VH00201, VH00202 and VH00203.
3. What are the available bore diameters?
The available bore diameters are 0.5 mm, 0.8 mm and 1.2 mm.
4. How should the correct model be selected?
The model should be selected according to the diameter of the compatible wire and the requirements of the applicable veterinary orthopedic fixation system.
