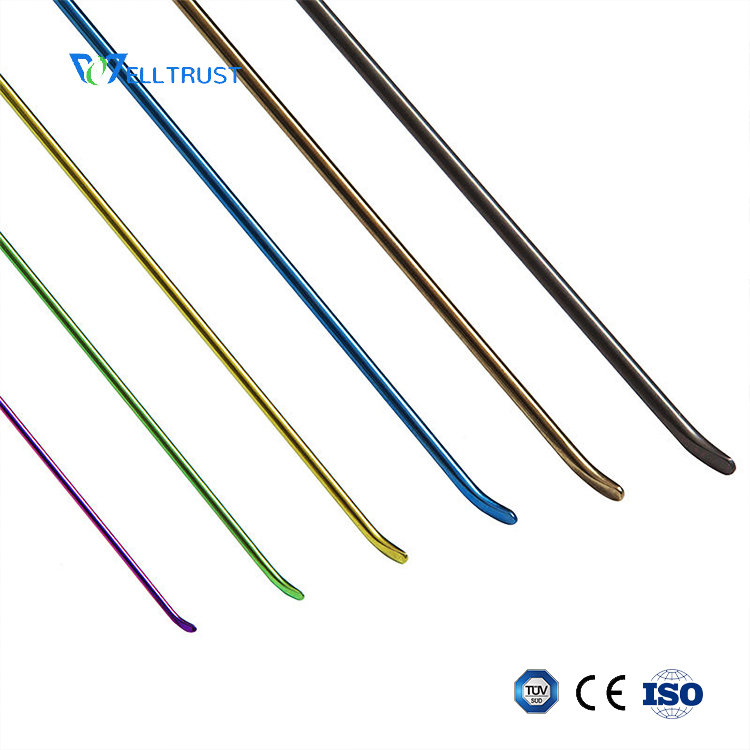

AO Elastic Nail
- Model-Based Procurement: VH01012–VH01040 identify the seven listed nail diameters.
- Diameter Range: 1.2–4.0 mm for procedure- and anatomy-based selection.

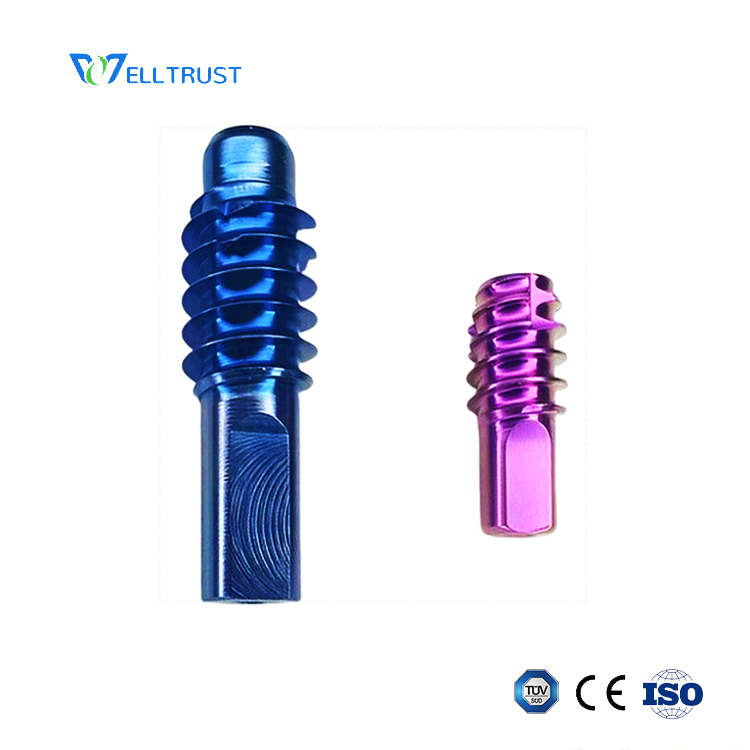

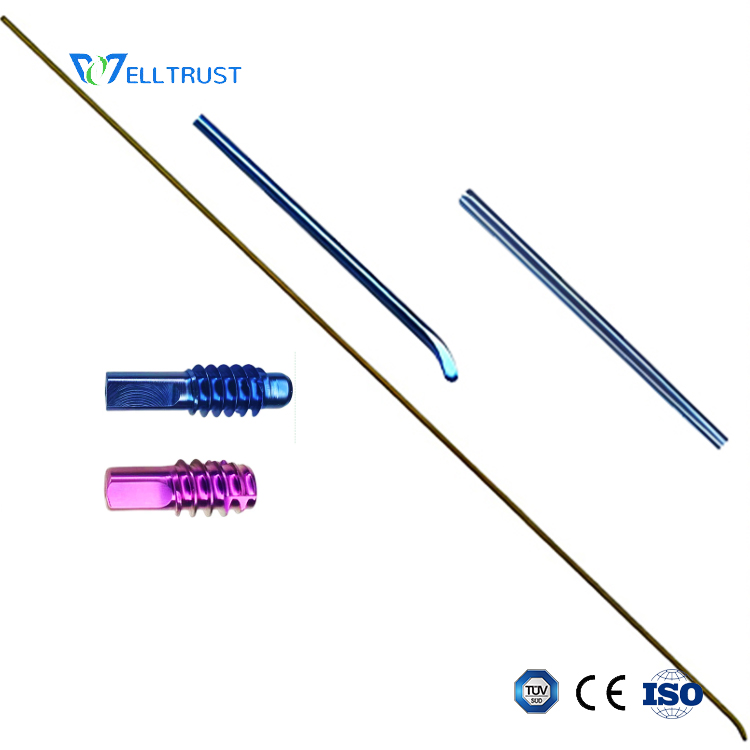

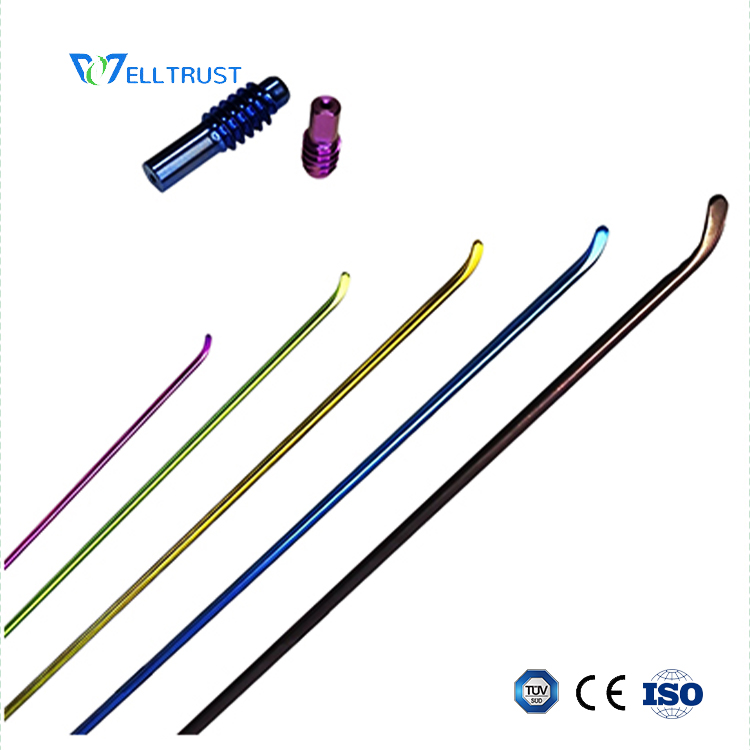

- System Components: Elastic Nail with small and large cap options.
- Stainless Steel Construction: Material stated for the nail range in the supplied product table.
- Professional Orthopedic Use: Select and apply only under qualified veterinary surgical supervision.

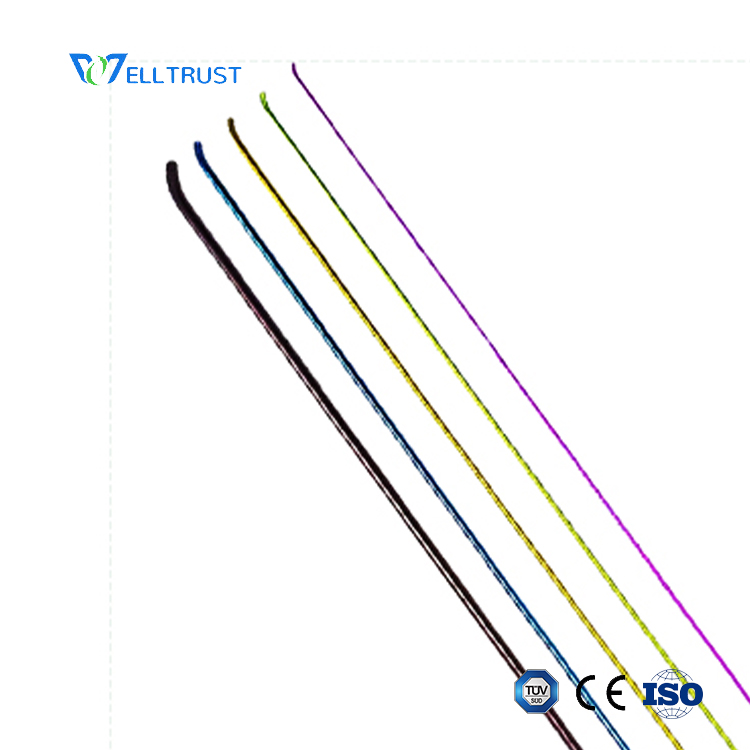

VH010 Stainless Steel AO Elastic Nail System is a veterinary orthopedic implant range for selected small-animal fracture fixation procedures. The product information lists stainless steel elastic nails in seven diameters from 1.2 mm to 4.0 mm, together with a small cap and a large cap. This model-based structure helps veterinary hospitals and distributors specify the required nail diameter and associated component during procurement.
Ordering specifications: The listed nail models are VH01012, VH01015, VH01020, VH01025, VH01030, VH01035, and VH01040. Their corresponding diameters are 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, and 4.0 mm. VH010S is listed as Cap small and VH010L as Cap large. The image does not state the nail length or cap dimensions, so these details should be confirmed before quotation.
Clinical role: Elastic intramedullary nails can provide flexible internal support in selected veterinary fracture fixation techniques. Research in young dogs has described elastic nail use for selected distal radius-ulna fractures, while the appropriate implant size and configuration depend on the medullary canal, fracture location, patient age, bone geometry, and surgeon's technique. The VH010 Stainless Steel AO Elastic Nail System must be evaluated as part of the complete orthopedic construct rather than as a stand-alone solution for all fractures.
Selection and compatibility: Before purchase, the surgical team should confirm the intended model, nail diameter, nail length, cap size, insertion instruments, and any additional fixation required. The current product documentation should also be reviewed for material grade, surface finish, tip design, sterile status, packaging, sterilization instructions, and regulatory information. These checks help align the product configuration with the hospital's surgical protocol and patient-specific requirements.
WTT Vet veterinary orthopedic solutions: WTT Vet supplies veterinary orthopedic implants, instruments, and surgical power tools for professional customers. Our product range supports coordinated procurement for fracture repair and other orthopedic procedures. We can help clarify VH010 model selection and related documentation, while the attending veterinary surgeon remains responsible for clinical assessment, implant selection, surgical technique, and postoperative care.
Frequently Asked Questions
Q1: Which model corresponds to a 3.0 mm nail?
A: The 3.0 mm option is listed as model VH01030.
Q2: What diameter options are listed for the system?
A: The listed diameters are 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, and 4.0 mm.
Q3: Are caps included with every nail?
A: The product table lists Cap small VH010S and Cap large VH010L, but it does not state the packaging relationship. Please confirm whether caps are included or ordered separately.
Q4: Can the system be used in young dogs?
A: Elastic nailing has been reported in selected young-dog fracture cases, but suitability depends on the patient and fracture. A qualified veterinary orthopedic surgeon must make the final decision.
