Portable X-ray Diagnostic System

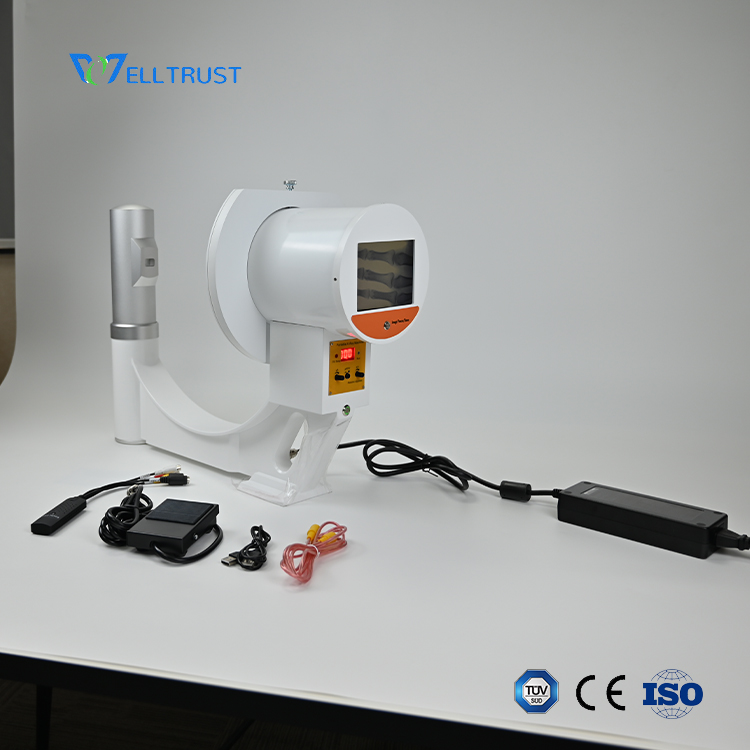

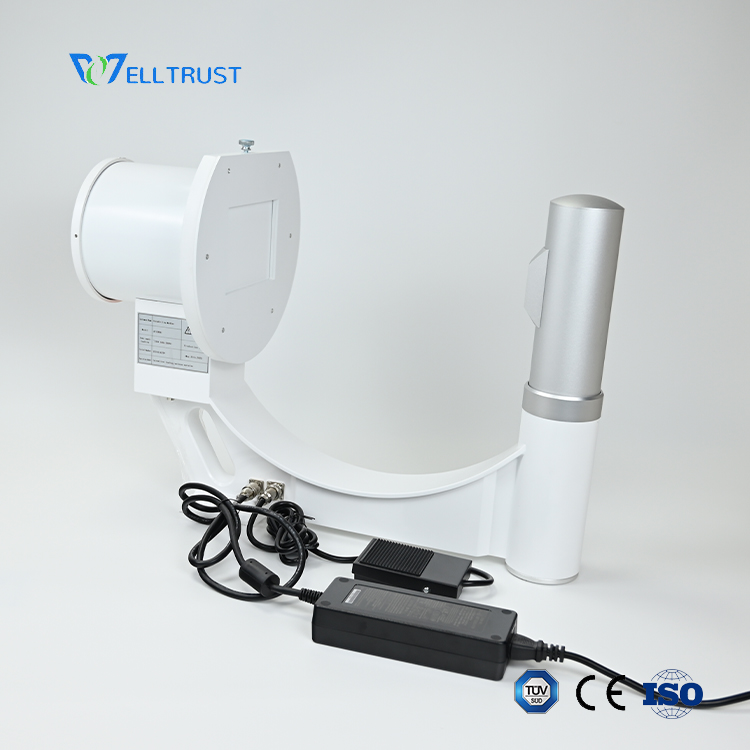

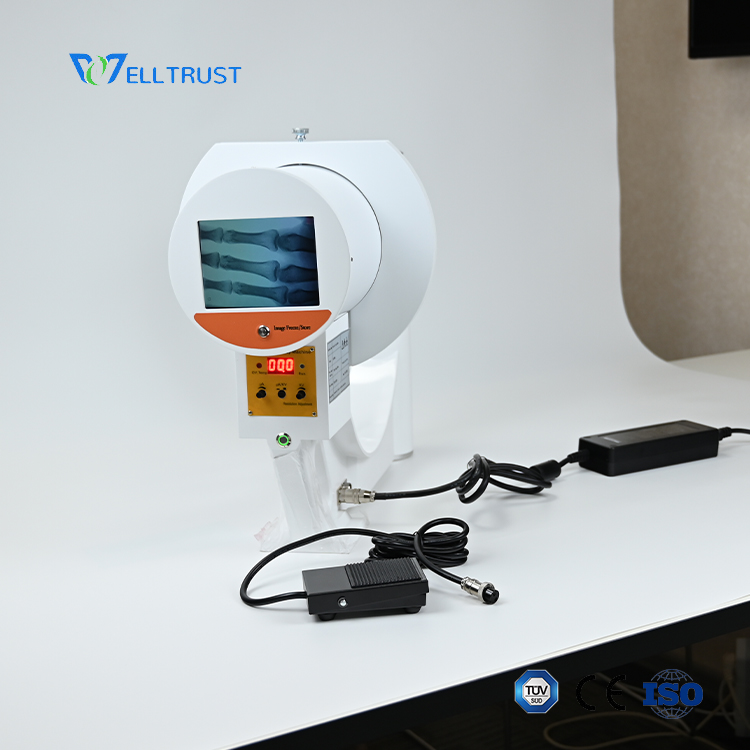

The Portable X-ray Diagnostic System is a compact veterinary imaging device for professional clinics, research facilities, and qualified testing environments. The system uses an X-ray tube, high-voltage generator, receiver, frame, and display arrangement to present internal structural images on an LCD screen. With a stated overall size of 51 cm x 36 cm x 12 cm and an approximate net weight of 4 kg, the 70A is designed for organized transport and flexible placement.

Technical specification overview: The product sheet lists a continuously adjustable X-ray tube voltage of 45-70 kV, a tube current of 500 uA with a stated +/-20% tolerance, an output image size of Dia. 50 mm (2 inches), and a survey thickness of up to 300 mm. The listed resolution is at least 2.5 lp/mm, while the stated X-ray leakage rate is no more than 0.5 mGy/h. Power consumption is listed as no more than 500 VA. Please verify these values against the final specification sheet, test report, and applicable product documentation before publishing them as contractual specifications.

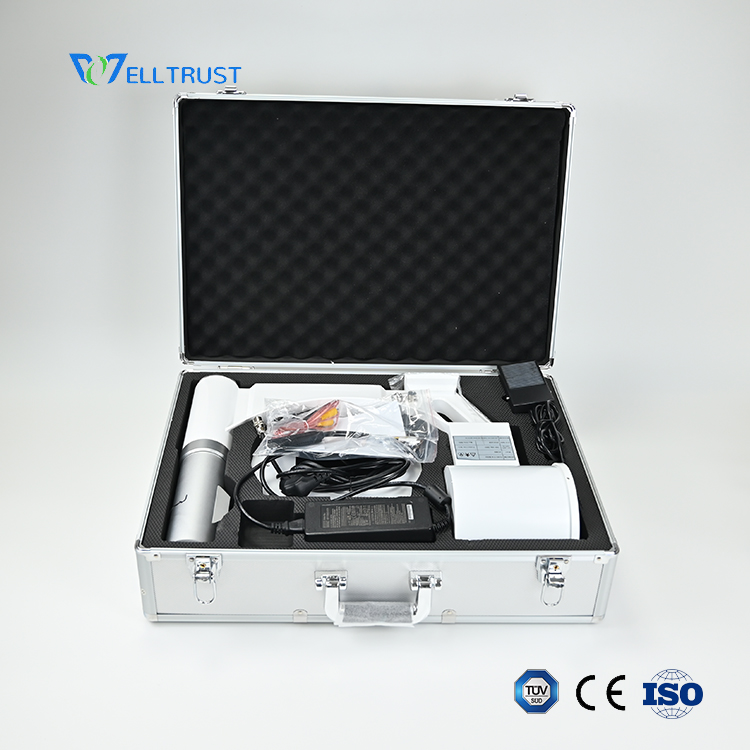

Configuration for procurement: The standard product table lists one portable X-ray machine, one aluminum box, one adapter and power cord, one shield screen, one set of instructions with qualified certificates and warranty cards, and one 15-inch LCD TV. Optional functions are available according to the manufacturer's optional function list. Buyers should confirm detector or receiver type, image storage, software, connectivity, exposure settings, power requirements, and the exact contents of the selected package.

Veterinary and testing scope: The 70A is primarily presented for veterinary X-ray diagnosis involving smaller and thinner animal parts. It may also be considered for scientific research and testing or other non-destructive testing applications within the permitted scope. The suitability of any imaging system depends on the body region, patient size, clinical question, positioning, exposure protocol, and applicable radiation-safety controls. Operation, maintenance, and image interpretation must be performed by appropriately trained personnel.

WTT Vet support: WTT Vet provides veterinary orthopedic implants, surgical instruments, power tools, and other veterinary equipment for professional customers. For the 70A, WTT Vet can help confirm the requested configuration, optional functions, documents, and accessory package before shipment. The supplied product sheet states a one-year free-repair service policy, excluding force majeure; service terms, warranty scope, and local support conditions should be confirmed in the quotation or sales contract.

Frequently Asked Questions

Q1: What is the 70A tube-voltage range?
A: The product sheet lists a continuously adjustable range of 45 kV to 70 kV.

Q2: What display is listed in the package?
A: One 15-inch LCD TV is listed in the product package table. Confirm the final display model and image-input configuration before ordering.

Q3: What is the maximum survey thickness shown?
A: The supplied specification table lists a survey thickness of up to 300 mm.

Q4: Does the system include a radiation shield?
A: A shield screen is listed among the package contents. It does not replace a complete radiation-protection program, personal protective equipment, controlled access, or compliance with local regulations.
