AGM W100 Wireless Endoscopic Imaging System for Veterinary Surgical Documentation

AGM W100 Wireless Endoscopic Imaging System for Veterinary Surgical Documentation

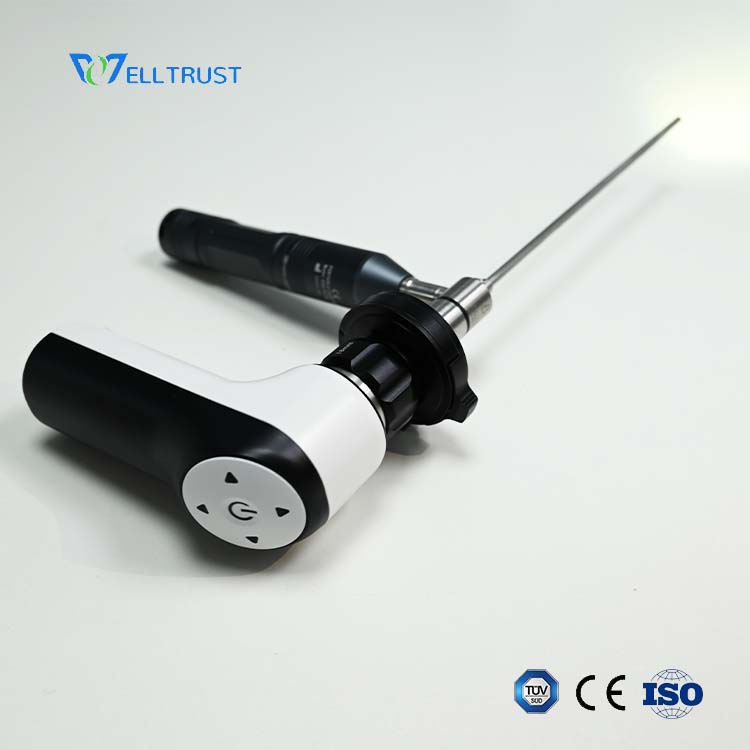

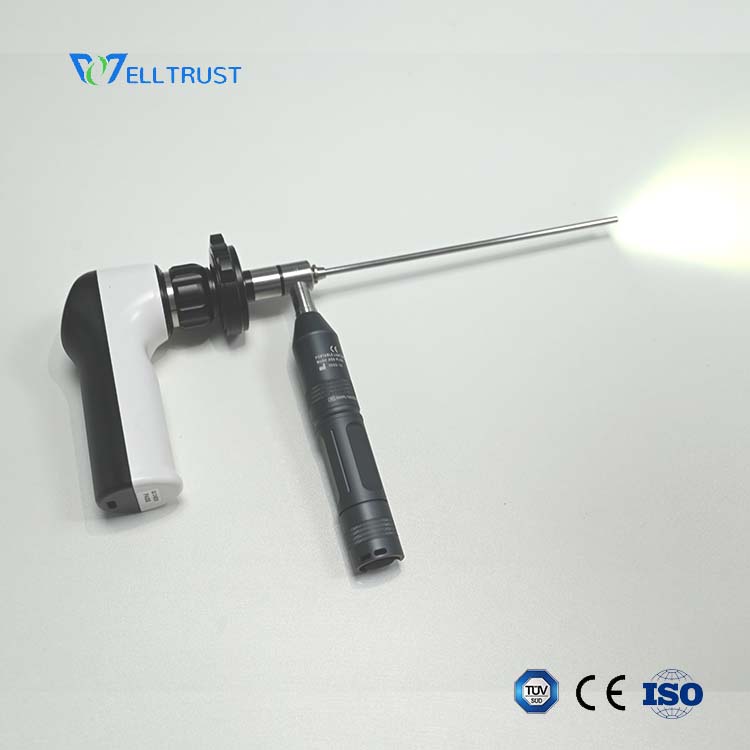

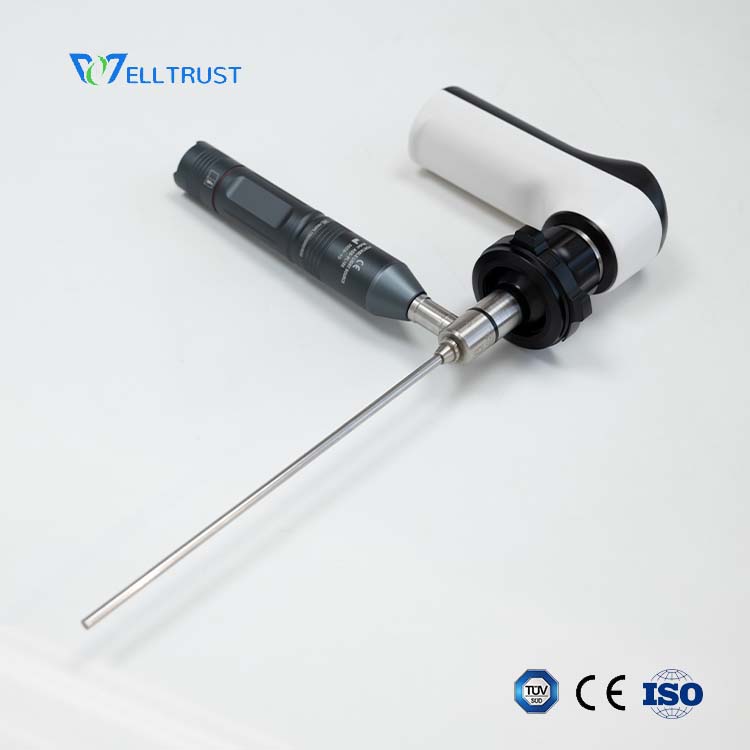

AGM W100 is a wireless endoscopic imaging system listed for veterinary equipment procurement and procedure documentation. The camera head connects to a compatible endoscope and transmits the image signal through Wi-Fi to a selected computer, mobile phone or tablet. The system is intended to help professional users organize image observation and documentation within an appropriate veterinary workflow.

The documented specifications include 1920 x 1080 video output, a 2 MP image sensor, IPX8 rating, 150 g product weight, 2800 mAh battery capacity and approximately 4 hours of stated battery life. The system operates at DC 5 V and uses a USB Type-C plug. The wireless center frequencies listed in the manual are 5180, 5220, 5745 and 5785 MHz.

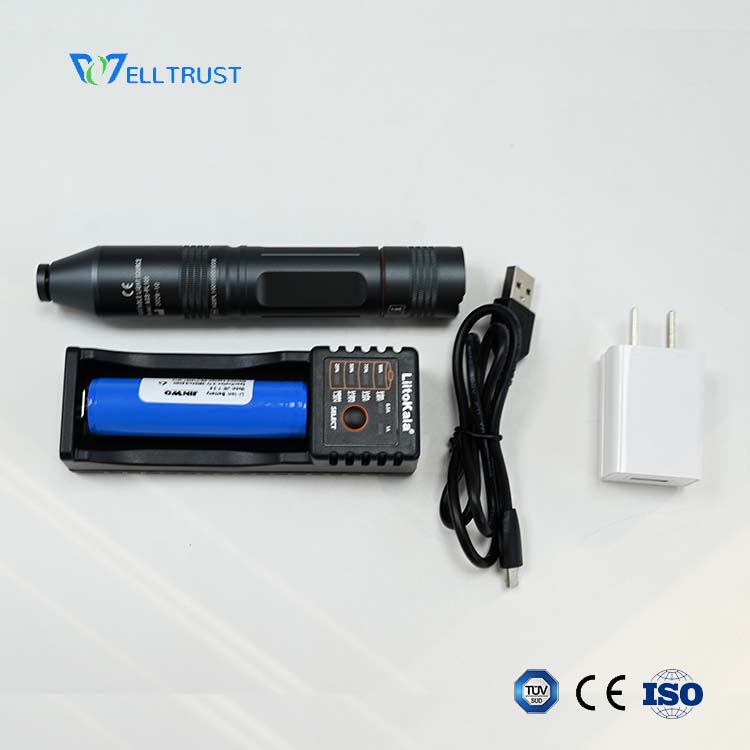

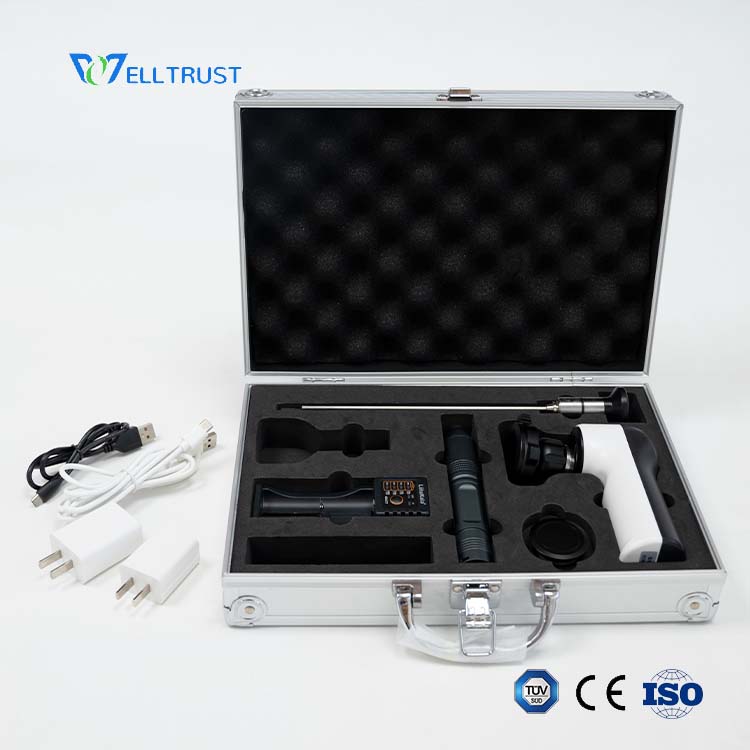

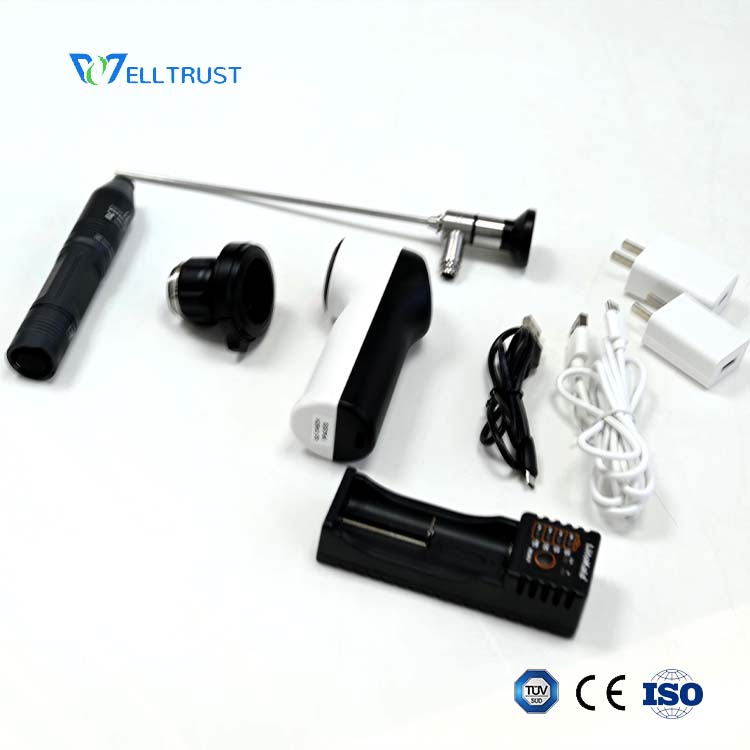

For procurement, the main system composition is a wireless endoscope camera head, coupler, power adapter, power cord and image-processing software. The packing information lists the coupler as an optional F22, F18 or F16 configuration. The actual coupler, software package, certificate and warranty documents should be confirmed on the quotation or packing list.

The desktop software is described for Windows 10 or above with a recommended 1920 x 1080 screen resolution. An Android software workflow is also described. Functions include image display, photo capture, video recording, freezing, white balance, image buffering, medical-record entry, file saving and printing. The master and slave device modes support image reception and controlled access to operating functions.

WTT Vet supplies veterinary implants, instruments, surgical power tools, external fixation products and related equipment for animal hospitals, distributors and professional procurement teams. Our service can include model comparison, product selection, quotation coordination, package-content confirmation, related-product sourcing and discussion of OEM/ODM or customized requirements. Special interface, packaging or configuration requests must be reviewed and confirmed before they are treated as available specifications.

Procurement notes:

• Confirm the compatible endoscope interface and required coupler before ordering.
• Confirm whether the customer requires Windows software, Android software or both.
• Confirm the number of receiving devices; the manual recommends not exceeding two connections for performance.
• Confirm package contents, warranty card, certificate of conformity and user manual.
• Confirm the applicable cleaning, storage and service requirements before clinical deployment.

Frequently Asked Questions

1. What should be specified when requesting an AGM W100 quotation?

Provide the intended veterinary application, compatible endoscope interface, coupler option, receiving device, software platform and required package documents.

2. Which coupler options are listed?

The manual lists F22, F18 and F16 as optional coupler configurations. Confirm the required and supplied option before purchase.

3. What software platforms are described?

The manual describes Windows desktop software and Android software. The Windows environment is listed as Windows 10 or above.

4. Does the system support medical records?

The Windows software section describes electronic medical-record and medical-record data interfaces, together with image storage and printing functions.

5. Can WTT Vet provide related veterinary equipment?

WTT Vet can discuss related veterinary instruments, implants, power tools and other equipment according to the requested application and configuration.

6. Is OEM/ODM customization available?

Customization requests can be reviewed with the WTT Vet team. Any requested interface, packaging, software or configuration change requires technical confirmation before quotation or production.

7. What is the stated warranty period?

The manual states a 2-year warranty from the date of purchase, subject to exclusions for abnormal use, unauthorized disassembly or repair and external damage. Confirm the final warranty terms in the commercial documents.
