WS100 Veterinary Micro Electric Spine Drill System for Spine and ENT Surgery
- WS100 micro electric spine drill system for selected veterinary spine and ENT surgical procedures.
- Variable speed range from 0 to 40,000 r/min for controlled high-speed drilling and burr applications.
- 125 gcm torque, low operating noise of ≤63 dB and input power of 72 W.
- Supports grinding and cutting burrs in 1 mm, 2 mm, 3 mm, 4 mm and 5 mm sizes.
- Straight-handle and angled-handle configurations support different access and working-position requirements.
- Portable system configuration with control unit, handpiece options, foot control, burrs and carrying case.
WS100 Veterinary Micro Electric Spine Drill System for Spine and ENT Surgery
The WS100 Micro Electric Spine Drill System is a high-speed surgical power tool for selected veterinary spine, ENT and other precision bone-work procedures. Its compact control unit and interchangeable handpiece configuration provide a practical solution for professional veterinary teams that require controlled drilling, grinding or cutting in a portable system.
The WS100 operates at a maximum listed speed of 0-40,000 r/min and provides listed torque of 125 gcm. The system is specified with a noise level of ≤63 dB, 72 W input power and at least 50 W output power. These parameters support high-speed micro-drilling workflows where controlled instrument handling and suitable burr selection are important.
The system supports grinding burrs and cutting burrs in 1 mm, 2 mm, 3 mm, 4 mm and 5 mm sizes. Veterinary professionals can select the appropriate burr type and diameter according to the target anatomy, access requirements and planned surgical technique. Straight-handle and angled-handle options are available in different lengths for different working positions and surgical approaches.

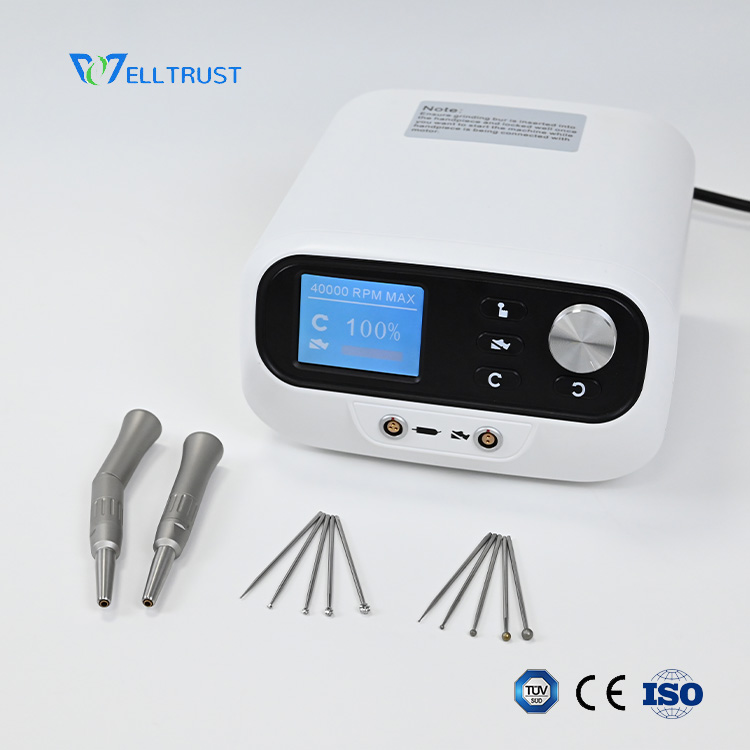

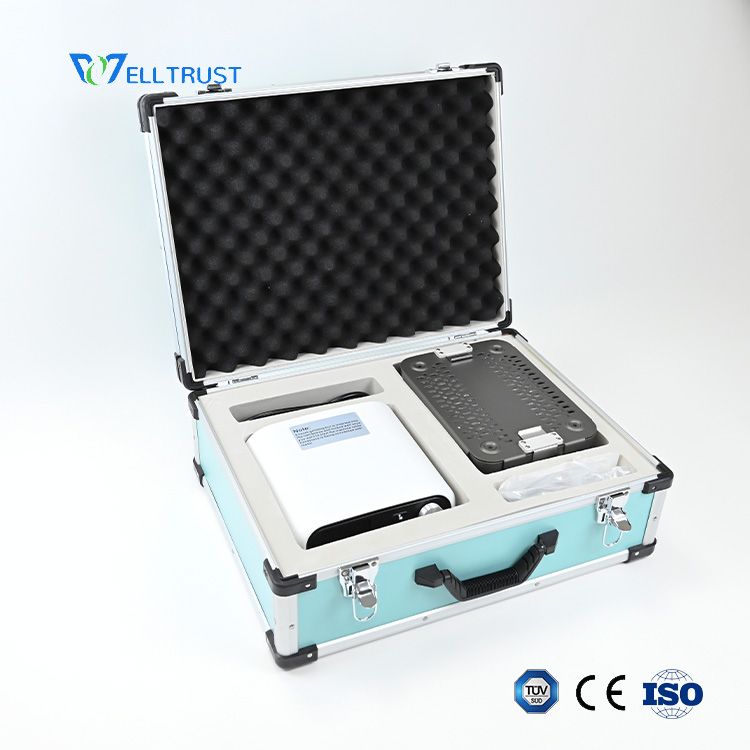

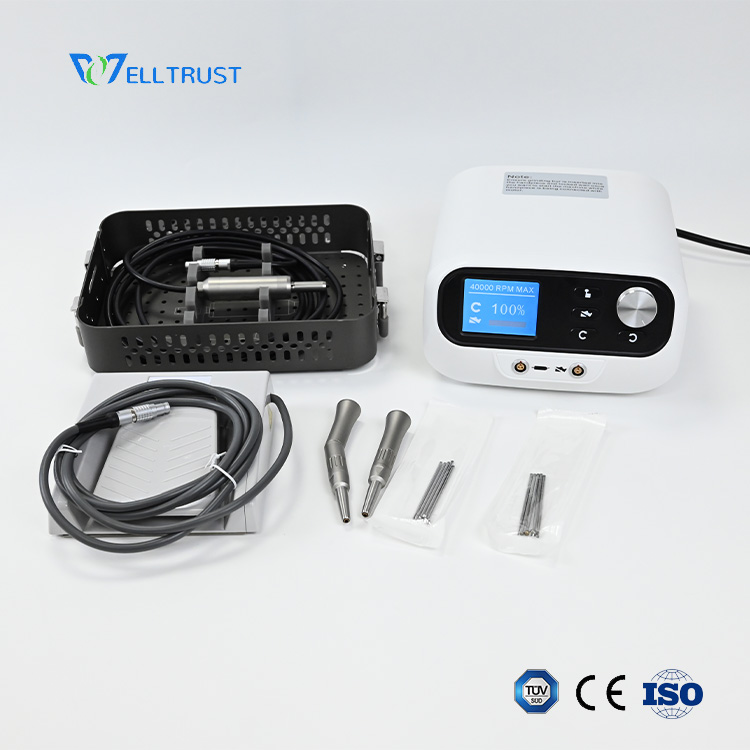

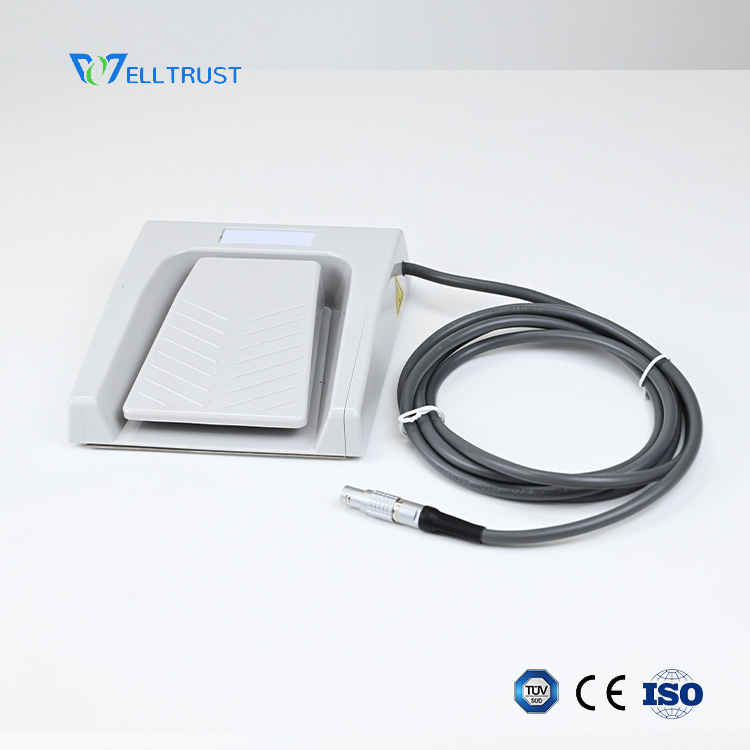

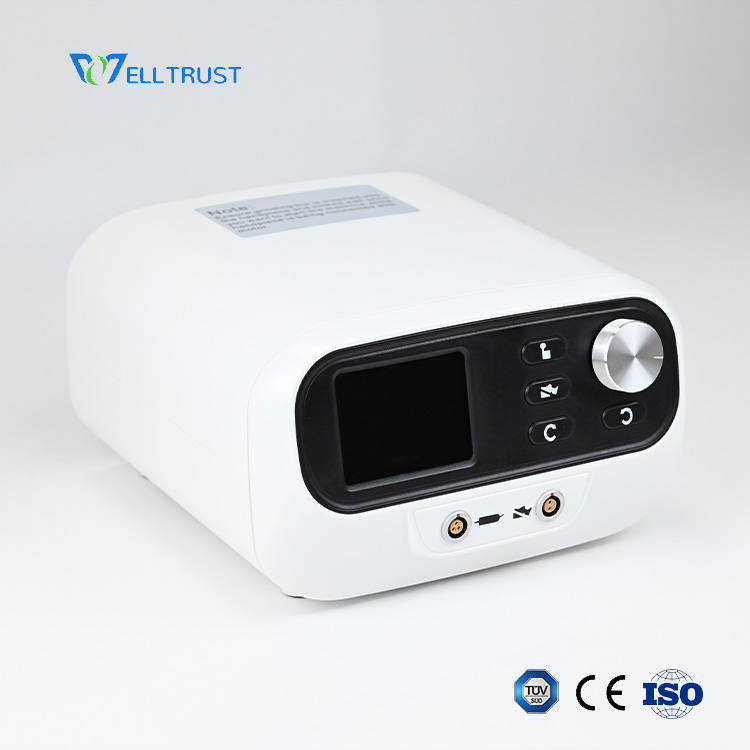

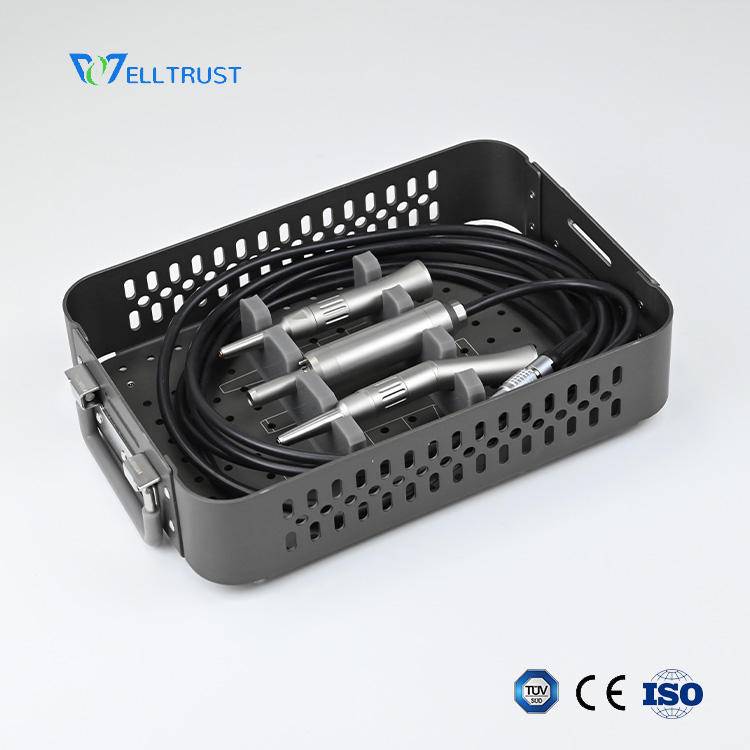

The illustrated WS100 configuration includes a control unit, handpiece accessories, grinding and cutting burrs, foot control components and a portable carrying case. This format helps procurement teams organize the main power unit and related accessories as one micro-drill solution for professional veterinary use.
The system uses AC 220 V, 50 Hz input power. The listed sterilization temperature is ≤135 °C, and the listed temperature rise is <40 °C. Users should operate, clean and process each component according to the current manufacturer's instructions and the applicable veterinary facility protocol.
WTT Vet supplies veterinary orthopedic implants, surgical instruments, power tools and related equipment for animal hospitals, distributors and professional procurement teams. Our service includes model comparison, burr and handpiece configuration, quotation coordination, complete veterinary equipment sourcing and communication about OEM/ODM or customized requirements.
Technical specifications
| Item | Specification |
|---|---|
| Model | WS100 |
| Product type | Micro Electric Spine Drill |
| Maximum speed | 0-40,000 r/min |
| Torque | 125 gcm |
| Noise | ≤63 dB |
| Input voltage | AC 220 V, 50 Hz |
| Input power | 72 W |
| Output power | ≥50 W |
| Sterilization temperature | ≤135 °C |
| Temperature rise | <40 °C |
| Grinding burr sizes | 1 mm / 2 mm / 3 mm / 4 mm / 5 mm |
| Cutting burr sizes | 1 mm / 2 mm / 3 mm / 4 mm / 5 mm |
| Handle configurations | Straight handle and angled handle options in different lengths |
Frequently Asked Questions
1. What is the WS100 Micro Electric Spine Drill used for?
WS100 is used for selected veterinary spine, ENT and precision bone-work procedures that require controlled high-speed drilling, grinding or cutting.
2. What is the maximum speed of the WS100?
The listed speed range is 0-40,000 r/min.
3. What burr sizes are available?
The system supports grinding and cutting burr sizes of 1 mm, 2 mm, 3 mm, 4 mm and 5 mm.
4. What is the difference between straight and angled handles?
Straight and angled handles provide different working orientations and access options. The appropriate handle and length should be selected according to the surgical site, approach and operator preference.
5. What are the main electrical and performance specifications?
WS100 uses AC 220 V, 50 Hz input power, has 72 W input power, at least 50 W output power, 125 gcm torque and a listed noise level of ≤63 dB.
6. What is included in the WS100 system configuration?
The illustrated configuration includes the control unit, handpiece options, grinding and cutting burrs, foot control components and a portable carrying case. WTT Vet can coordinate the required configuration for professional procurement.
7. Can WTT Vet help select the correct burrs and handpiece?
Yes. WTT Vet can discuss the intended procedure, required burr sizes, handle orientation, working length and related veterinary power-tool requirements before quotation.
8. How should the WS100 be processed after use?
Clean, inspect and process the applicable components according to the manufacturer's current instructions and the veterinary facility's validated instrument-processing protocol. The listed sterilization temperature is ≤135 °C.
