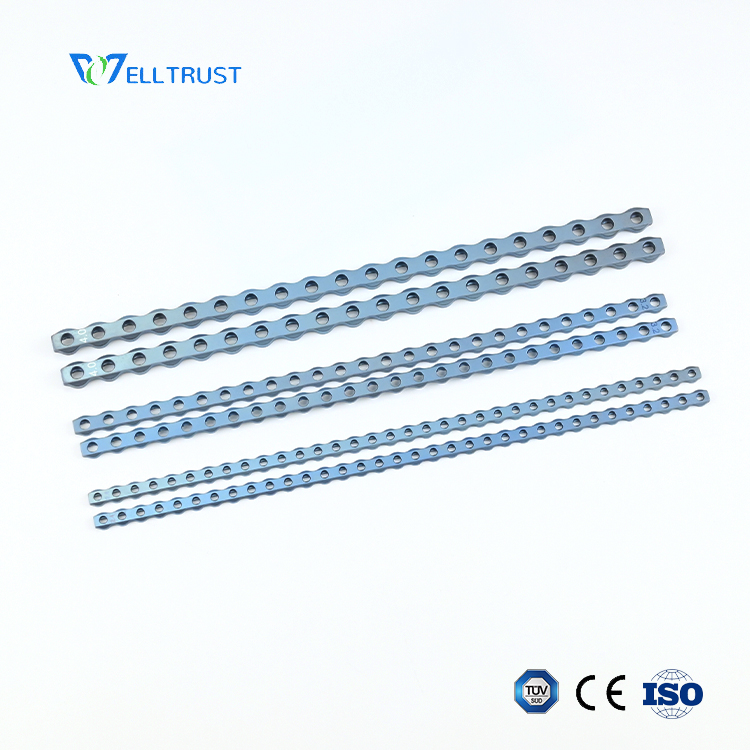

Veterinary Reconstruction Locking Plate
- Designed for animal orthopedic fracture fixation.
- Locking plate configuration for compatible screw fixation.
- 1.6, 2.4, 3.2 and 4.0 mm size options.
- Different hole numbers and plate lengths available.
- Suitable for professional veterinary orthopedic procedures.
Veterinary Reconstruction Locking Plate is designed for animal orthopedic fixation applications where stable bone fixation and stabilization are required. The plate features a series of locking holes and is available in several sizes to accommodate different surgical requirements.
The available product range includes 1.6 mm, 2.4 mm, 3.2 mm and 4.0 mm configurations. Within each size, different hole numbers, widths and lengths are available, providing veterinary professionals with multiple options when selecting a plate for an individual procedure.
Product Highlights
- Reconstruction locking plate for veterinary orthopedic procedures
- Multiple size options from 1.6 to 4.0 mm
- Different hole numbers and plate dimensions
- Multiple plate lengths for different fixation requirements
- Designed for use with compatible locking screws
- REF numbers provided for accurate product identification
Product Specifications
| Product Size | Holes | T/W/L (mm) | REF |
|---|---|---|---|
| 1.6 | 34 | 1.5 / 4 / 135 | 030210203421 |
| 1.6 | 30 | 1.5 / 5 / 136 | 030210213021 |
| 2.4 | 43 | 1.9 / 5 / 238.5 | 030210224322 |
| 2.4 | 34 | 2.1 / 6.5 / 240 | 030210233422 |
| 3.2 | 26 | 2.8 / 8 / 234 | 030210242621 |
| 3.2 | 22 | 3.1 / 9 / 231 | 030210252221 |
| 4.0 | 20 | 4 / 10 / 240 | 030210262021 |
| 4.0 | 18 | 4.3 / 11 / 243 | 030210271821 |
Applications
This Veterinary Reconstruction Locking Plate is intended for veterinary orthopedic fracture fixation and bone stabilization. The different dimensions and configurations allow veterinary professionals to select a suitable plate according to the bone dimensions, fracture characteristics and planned fixation procedure.
The product is suitable for professional veterinary customers, including animal hospitals, veterinary clinics, orthopedic surgeons, veterinary distributors and veterinary medical device suppliers.
Well Trust can provide product information, specification confirmation and support for professional customers requiring veterinary orthopedic fixation products.
Selection Considerations
Veterinary professionals can consider the required plate size, hole number, plate length and compatible screw configuration when selecting a Reconstruction Locking Plate. The appropriate specification should be determined according to the individual surgical requirements.
FAQ
1. What is a Veterinary Reconstruction Locking Plate?
It is a veterinary orthopedic bone plate designed for fracture fixation and bone stabilization using compatible locking screws.
2. What sizes are available?
The product is available in 1.6, 2.4, 3.2 and 4.0 mm sizes.
3. Are multiple plate lengths available?
Yes. Different hole configurations and plate lengths are available within the product range.
4. Who is this product intended for?
It is intended for professional veterinary orthopedic applications, with plate selection determined by the veterinary professional according to the surgical requirements.
