Veterinary MIO K-wire Distractor Set

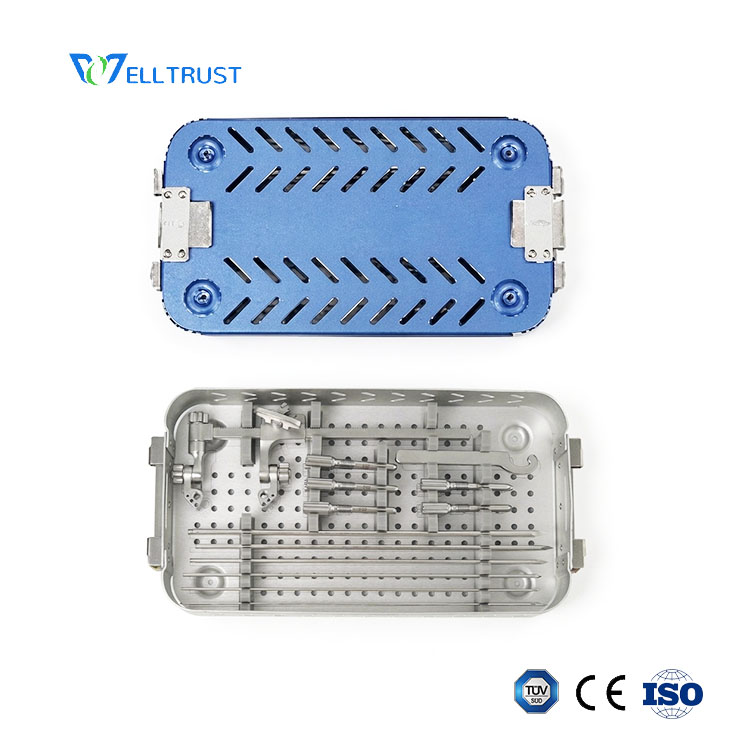

MIO 29017 is a complete veterinary instrument set for selected MIO/MIPO fracture reduction and orthopedic plate-positioning workflows. The set is built around a multifunctional K-wire distractor and includes sleeves, K-wires, a self-locking wrench and an instrument case.

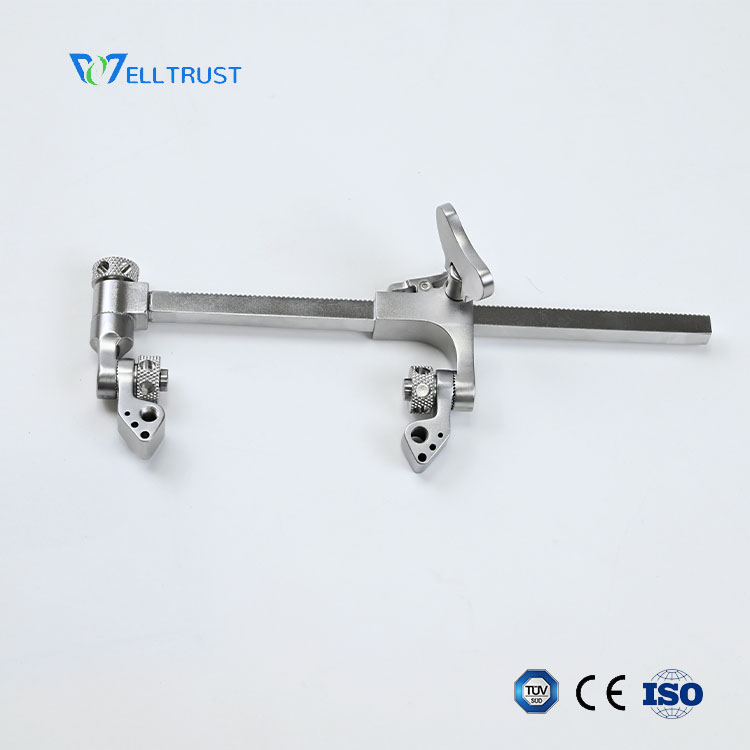

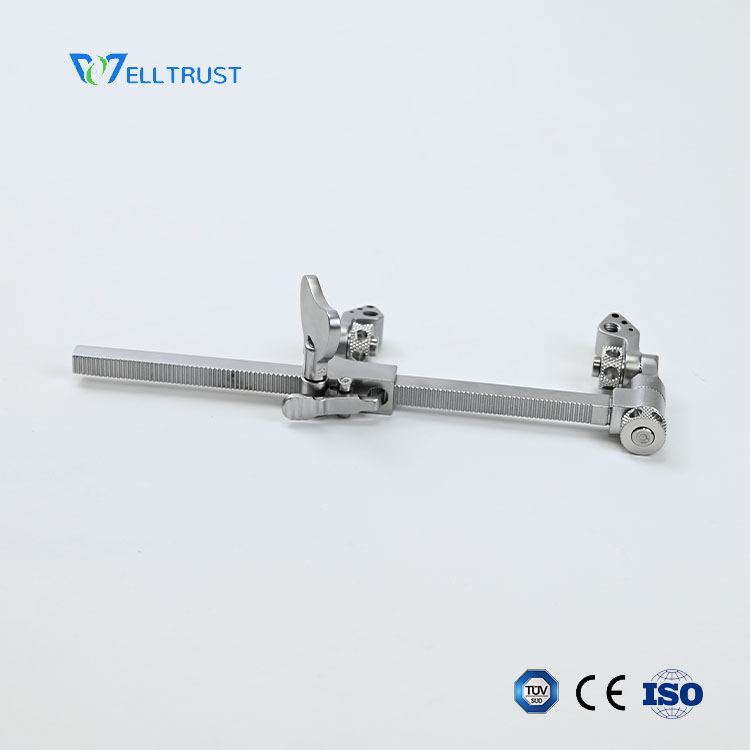

The multifunctional distractor provides a 1–20 cm open-size range and supports distraction, compression, left-right rotation and up-down rotation. Its replaceable sleeve system allows procurement teams to match the instrument with the required K-wire diameters.

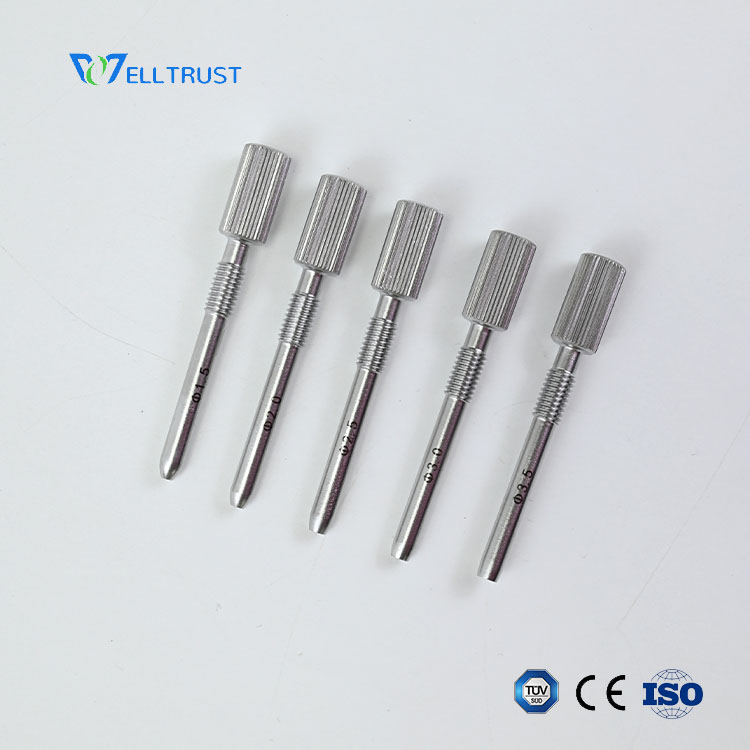

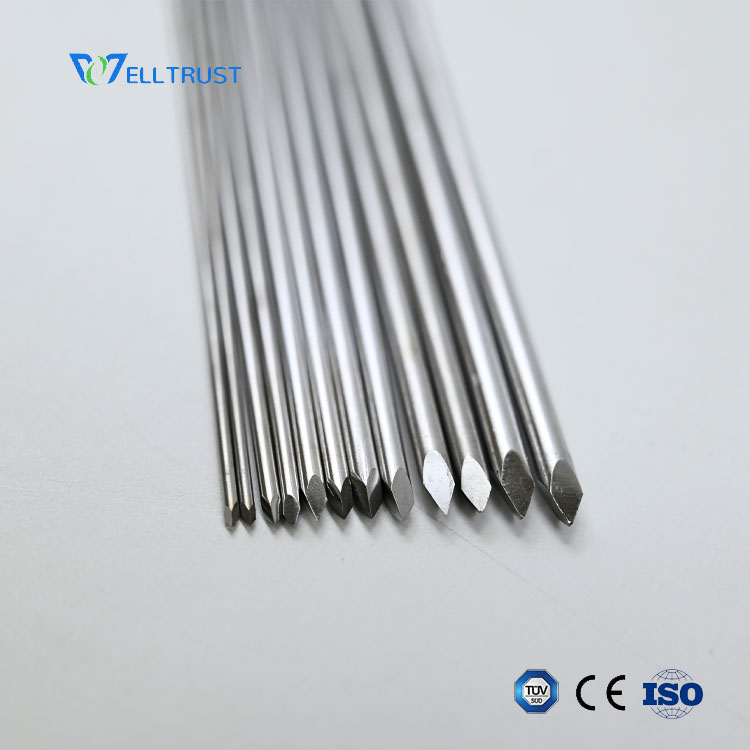

The standard illustrated configuration includes five sleeve sizes from Ø1.5 mm to Ø3.5 mm and six K-wire sizes from Ø1.5 mm to Ø4.0 mm. All K-wires are 250 mm long, and two pieces of each listed K-wire and sleeve size are included.

WTT Vet supports model selection, size comparison, quotation coordination and related veterinary orthopedic supply for animal hospitals, distributors and professional buyers. The MIO 29017 set can be evaluated together with compatible plates, screws, drills and other fracture-fixation instruments.

Frequently Asked Questions

1. What is the product model?

The product model is MIO 29017 Veterinary MIO/MIPO K-Wire Distractor and Retractor Instrument Set.

2. What is the distractor opening range?

The multifunctional distractor has a 1–20 cm open-size range.

3. How many adjustment movements are available?

The distractor supports distraction, compression, left-right rotation and up-down rotation.

4. What are the included K-wire and sleeve specifications?

K-wires are Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm, Ø3.5 mm and Ø4.0 mm × 250 mm. Sleeves are Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm and Ø3.5 mm. Two pieces of each listed size are included.

5. Can WTT Vet support a complete orthopedic purchase?

Yes. WTT Vet supports quotation coordination and related veterinary plates, screws, K-wires, orthopedic instruments and surgical power-tool supply.
