How to Choose a TPLO Saw and Blade for Canine Orthopedic Surgery
Selecting a TPLO saw requires more than comparing the appearance of different handpieces. Veterinary teams and medical device distributors should review the saw’s oscillation rate, swing angle, power supply, blade radius, attachment interface and sterilization requirements. The intended procedure, animal size and current manufacturer documentation should also be considered before ordering or using a TPLO surgical instrument.
What Is a TPLO Saw?
A TPLO saw is an orthopedic saw designed to support the controlled bone-cutting step in Tibial Plateau Leveling Osteotomy, commonly called TPLO. TPLO is one surgical approach used in veterinary orthopedic practice for canine cranial cruciate ligament-related instability. The saw is used together with a compatible TPLO saw blade selected according to the surgical plan and the instrument system.
Unlike a general-purpose veterinary orthopedic saw, a dedicated TPLO saw is configured for the circular or semicircular cutting requirements associated with the procedure. The final equipment choice should always be made by a qualified veterinary professional based on the animal, the planned technique and the manufacturer’s instructions.
Key Specifications of the WTT-T150 TPLO Saw
The WTT Vet TPLO Saw is listed as model WTT-T150. Its product information provides the following specifications:
| Specification | Displayed information |
|---|---|
| Type | Veterinary orthopedic saw |
| Oscillation rate | 0–16,000 cpm |
| Swing angle | ≥11.5° |
| Operation voltage | 12 V |
| Battery | Ni-MH battery, 1800 mAh |
| Product application | TPLO surgery in small animals, subject to the current product documentation |
The listed oscillation rate and swing angle are equipment specifications, not clinical performance guarantees. The selected operating settings should follow the current instructions for use and the veterinary surgeon’s established procedure.
Normal TPLO Saw Blade vs. Slotted TPLO Saw Blade
WTT Vet identifies two TPLO saw blade types for the WTT-T150 system: a normal TPLO saw blade and a slotted TPLO saw blade with holes. These options should be evaluated according to the compatible handpiece, blade interface, radius and surgical workflow.
A slotted TPLO saw blade may be selected when the specified blade design is required by the instrument system or surgical protocol. However, a blade should not be considered compatible only because its external shape appears similar to the original component. Buyers should confirm the product model, connection method and technical documentation before purchasing replacement blades.
How to Choose the Right TPLO Blade Size
The WTT-T150 product page lists the following TPLO blade sizes:
R8, R10, R12, R15, R18, R20, R21, R24, R27, R30 and R33.
The radius is an important part of TPLO blade selection because it relates to the planned cutting geometry. The appropriate size should be determined according to the animal’s anatomy, tibial dimensions, surgical plan and the veterinary surgeon’s technique. A distributor should confirm the required blade range before preparing a complete TPLO instrument quotation.
TPLO Saw Compatibility and Replacement Checks
Before ordering a TPLO saw blade, check the following details:
- Compatible TPLO saw model and handpiece.
- Blade interface and locking method.
- Blade radius and dimensional requirements.
- Normal or slotted blade configuration.
- Compatibility with the intended surgical technique.
- Cleaning, sterilization and storage requirements.
Inspect blades for visible deformation, damaged teeth, corrosion, cracks or other signs of wear before use. Replacement intervals should be determined according to the manufacturer’s instructions, facility policy and the condition of the specific blade. Reprocessing must follow the validated procedure applicable to the product.
TPLO Saw, Plate and Instrument Set Planning
A TPLO saw is one part of a larger veterinary orthopedic workflow. Buyers may need to evaluate the saw together with a TPLO Plate, compatible screws and a TPLO Locking Plate Instrument Set. Reviewing these components together helps clarify the required instrument configuration and accessory list.
WTT Vet also provides other veterinary orthopedic saws, including the E150 Orthopedic Saw and the BD150 Small Bone Orthopedic Saw. These products have different specifications and should not be treated as interchangeable with the WTT-T150 TPLO Saw.
WTT Vet TPLO Saw Product Configuration

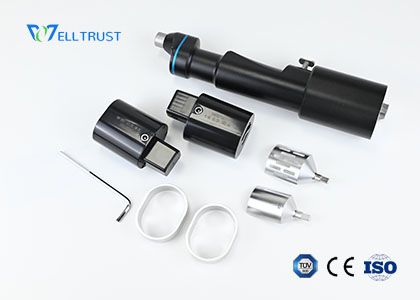

The WTT-T150 standard set is listed with a TPLO saw handpiece, two Ni-MH batteries, one transfer shield, one internal hexagon spanner, one saw blade and an autoclave tray. The product page also states that an optional autoclave case is available. The exact delivery configuration, blade type and available radius should be confirmed in the quotation before purchase.
For distributors and veterinary hospitals, it is useful to specify the target animal range, required blade radii, preferred blade type, quantity and sterilization workflow when requesting product information. This helps the supplier prepare a suitable TPLO saw and accessory configuration.
Frequently Asked Questions
What is a TPLO saw used for?
A TPLO saw supports the controlled bone-cutting step in Tibial Plateau Leveling Osteotomy procedures for small animals. The instrument must be used by qualified veterinary professionals according to the applicable product documentation.
What TPLO blade sizes are available?
The WTT-T150 product information lists R8, R10, R12, R15, R18, R20, R21, R24, R27, R30 and R33 blade sizes.
What is a slotted TPLO saw blade?
A slotted TPLO saw blade is a blade configuration identified by WTT Vet as having slots or holes. It must be matched with a compatible TPLO saw system and selected according to the surgical requirements.
How do I confirm TPLO saw blade compatibility?
Confirm the saw model, blade interface, radius, dimensions, locking method and current manufacturer documentation. Do not rely on appearance alone.
Can a TPLO saw be used for every veterinary orthopedic procedure?
No. A TPLO saw is designed for a specific application and should be used only according to its indications, compatible blades and current instructions for use.
